Description

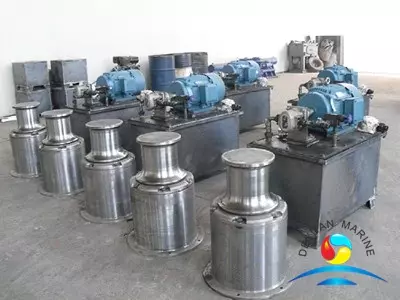

Marine Vertical Type Hydraulic Capstan With Hydraulic Power Pack Unit
The marine capstan is an important equipment of the ship. It is the mechanical device that ensure the ship can sail normally.
Due to the different application, the marine capstan is divided into anchor capstan and mooring capstan
Based on the shape, it can be divided into vertical capstan and horizontal capstan.
According to the input power, it can be divided into electric capstan and hydraulic capstan.
Normally the hydraulic capstan need a hydraulic power pack unit offered together, but if the customer already have a suitable HPU, could just buy a capstan only, we will design the capstan in correct parameters to match the pump station.
We can supply electric, hydraulic or diesel type mooring/anchor handing capstans, with CCS, NK, BV, ABS, DNV, GL, LR, etc certification.
Marine Vertical Type Electric Capstan Technical parameters
| (kN)rated pull | (m/min)rated speed | (φmm×m)the capacity of drum | (kW)motor power | |
| electric | hydraulic | |||
| 5 | ≥18 | φ11 | 3/1.2 | 5.5 |
| 10 | ≥18 | φ11 | 4.3/1.7 | 7.5 |
| 15 | ≥18 | φ13 | 8.5/3.5 | 11 |
| 20 | ≥18 | φ15 | 11/11/7.5 | 15 |
| 30 | ≥18 | φ17.5 | 16/16/11 | 18.5 |
| 50 | ≥18 | φ20.5 | 16/16/11 | 30 |
| 70 | ≥15 | φ26 | 22/22/11 | 45 |
| 100 | ≥15 | φ28 | 45/45/30 | 55 |
| 120 | ≥15 | φ32.5 | 60/60/45 | 75 |
| 150 | ≥15 | φ36.5 | 60/60/45 | 90 |
| 200 | ≥15 | φ40 | 75/75/36 | 110 |
| 250 | ≥12 | φ46 | 75/75/36 | |
