Yacht Horizontal Electric Motor Mooring Rope Capstan

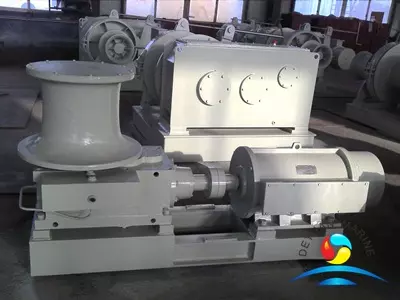

The type of the photo is a horizotal motor capstan, consists of a vertical warping drum, a gear device, and electric motor and coupling.
It is quite convenient to dismount for maintaining or repairing since it is flange coupling between shafts of motor and gear box.
| Chain Dia. | Working Load | Working Speed | Mooring Load | Mooring Speed | Wire Dia. | Motor Power (kW) | |
| (mm) | (kN) | (m/min) | (kN) | (m/min) | (mm) | Electric | Hydraulic |
| 12.5/14 | 5.9/7.4 | ≥12 | 5 | ≥10 | ȼ11 | 3/1.2 | 4 |
| 16/17.5 | 10.9/13.0 | ≥12 | 8 | ≥10 | ȼ13 | 4.3/1.7 | 7.5 |
| 19/22 | 15.3/20.6 | ≥13 | 10 | ≥10 | ȼ13 | 6/2.5 | 11 |
| 24/26 | 24.5/28.7 | ≥9 | 20 | ≥8.5 | ȼ15 | 7.5/7.5/5 | 11 |
| 28 | 33.3 | ≥9 | 30 | ≥8.5 | ȼ17.5 | 11/11/7.5 | 15 |
| 30/32 | 38.3/43.5 | ≥9 | 30 | ≥8.5 | ȼ17.5 | 16/16/11 | 15 |
| 34/36 | 49.1/55.1 | ≥9 | 30 | ≥8.5 | ȼ17.5 | 16/16/11 | 18.5 |
| 38/40 | 61.4/68.0 | ≥9 | 50 | ≥8.5 | ȼ20.5 | 22/22/16 | 30 |
| 42/44 | 75/82.3 | ≥9 | 50 | ≥8 | ȼ20.5 | 22/22/16 | 30 |
| 52 | 128.4 | ≥9 | 50 | ≥8 | ȼ20.5 | 30 | 37 |
| 60 | 171 | ≥9 | 50 | ≥8 | ȼ20.5 | 37 | 45 |
More electric anchor and mooring rope capstan can be offered,pls contact us for more details.
