Description

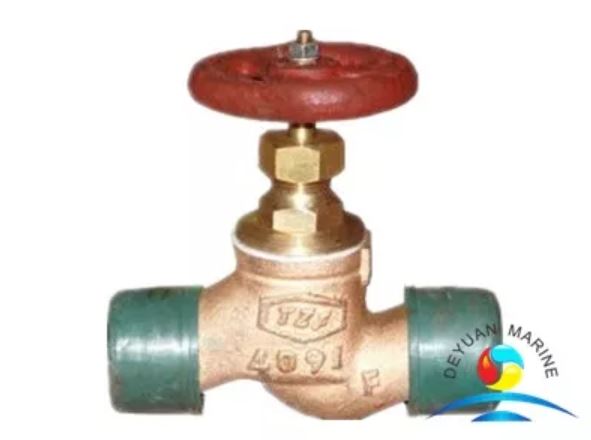

Marine Low Pressure Bronze Male Threaded Stop Check Valve:

We can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc

Stop Check Valve standard:CB/T,GB/T,,JIS ,DIN ,API、ANSI,BS etc.

DN(MM)	Stop Check Valve					Hand wheel		Weight(kg)
	Structure dimension
	L		H≈		H1
	A type	Btype	Atype	Btype	B type	Do	S	Atype	Btype
6	78	34	90	77	32	50	6	0.34	0.28
10	80	34	90	78	32	50	6	0.4	0.32
DN15~32 Dimension Stop Check Valve
15	95	46	100	91	40	50	6	0.6	0.53
20	110	49	112	100	44	65	7	0.98	0.96
25	125	53	128	113	48	80	8	1.38	1.33
32	145	58	136	121	56	80	8	1.6	1.55

More Marine Low Pressure Bronze Male Threaded Stop Check Valve can be offered, pls contact us for more details
