Marine Cast Iron Flanged Stop Check Valves

Marine Cast Iron Flanged Stop Check Valves

View Inquiry Quote Products List
Categories: ,

Description

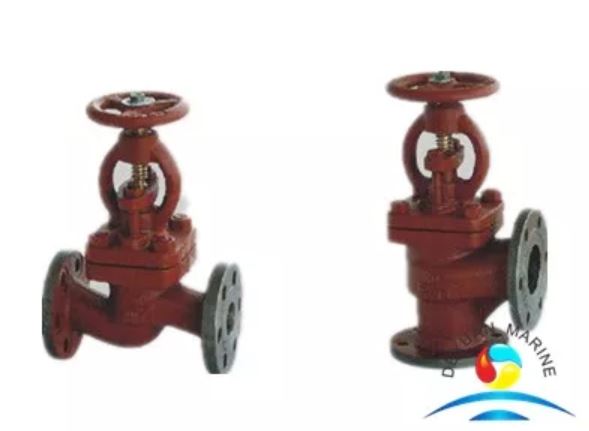

Marine Cast Iron Flanged Stop Check Valves :
We can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc
Stop Check Valves  standard:CB/T,GB/T,,JIS ,DIN ,API、ANSI,BS etc
Stop Check Valves Technical Details:

Nominal pressure(Mpa) Nominal Diameter(mm) Applicable medium
0.6 50~300 Sea water,fresh water,lubricanting oil,fuel oilt≤220℃steam
1 65~250
1.6 20~50
PN
(Mpa)		 DN
(mm)		 Structure dimension Hand wheel  Weight(kg)
L H≈ H1
A type B type Atype B type B type Do S A type B type
1 65 290 115 310 277 115 140 12 18.9 16.7
80 310 125 345 304 125 160 14 23 19.9
100 350 150 374 325 135 180 14 31 27.2
125 400 175 426 366 155 200 17 39.3 37.5
150 480 180 482 410 160 200 17 55.5 48.4
1.6 20 150 75 217 203 75 7 95 5.7 5.1
25 160 80 217 203 80 7 105 6 5.6
32 180 85 236 216 85 7 115 7 6.9
40 200 90 260 236 90 8 125 9.2 8.5
50 230 95 288 258 95 8 135 11.9 11.3

More Marine Cast Iron Flanged Stop Check Valves can be offered, pls contact us for more details.
