Description
XLPE Insulated Medium Voltage Shipboard Power Cable
Cable Application:
The cable is used on ships,petrol platforms and offshore buildings for transmitting medium voltage power.
Cable Standards:
IEC 60092-350 , IEC 60092-354 , IEC 60332-1-2
IEC 60332-3-22 , IEC 60754-1/2 , IEC 61034

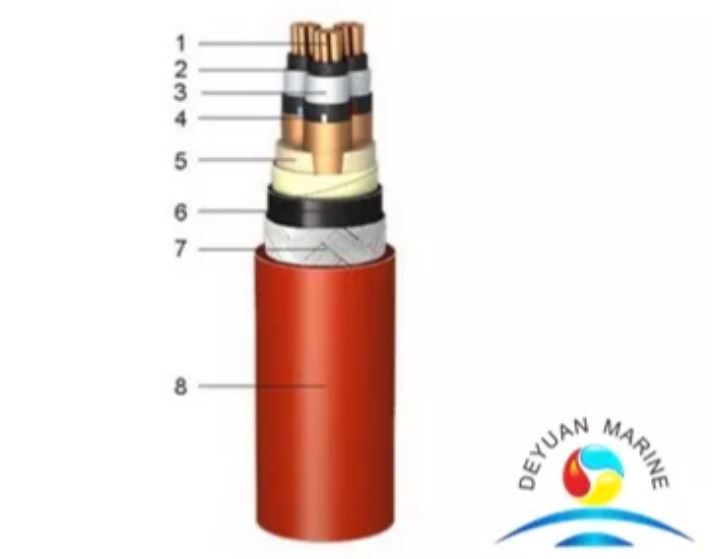

Cable Construction:
1- Conductor: Stranded circular compacted plain copper class2 IEC 60228
2- Conductor screening: Semi-conducting material
3- Insulation: XLPE
4- Insulation screening: Semi-conducting material,Plain copper tape
5- Filler(if necessary)
6- Inner covering: Halogen-fee compound
7- Armour: Metal wire braid
8- Outer sheath: PO
Voltage: 3.6/6(7.2)kV , 6/10(12.0)kV , 8.7/15(17.5)kV
Temperature: 90℃
Cable Parameter:
