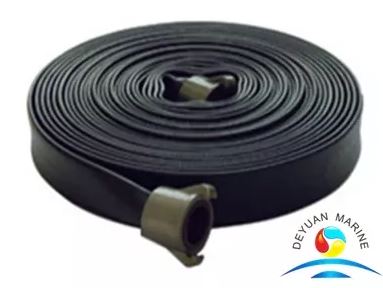

TPU Double Coating Fire Hose

 Back to shop

TPU Double Coating Fire Hose

Deyuan Marine

View Inquiry Quote Products List
Categories: ,

Description

TPU Double Coating Hose

Standard Length:
10M up to 40M.
Standard:
GB6246,EN14540,UNI9487or according to customer’s requirement standard.
Color:
Color is yellow or brown, or according to the customer request custom color.
Features:

Wear resistance, impact resistant, easy cleaning, ozone resistance, high temperature resistant, long service life.

TPU Double Coating Hose Pressure Required
Diameter Working Pressure Bursting Pressure
Inch mm Bar Mpa Psi Bar Mpa Psi
1-1/4″ 32 8-25 0.8-2.5 190-365 24-75 2.4-7.5 350-1090
1-1/2″ 38 8-25 0.8-2.5 120-365 24-75 2.4-7.5 350-1090
1-3/4″ 45 8-25 0.8-2.5 120-365 24-75 2.4-7.5 350-1090
2″ 52 8-25 0.8-2.5 120-365 24-75 2.4-7.5 350-1090
2-1/2″ 64 8-25 0.8-2.5 120-365 24-75 2.4-7.5 350-1090
2-3/4″ 70 8-25 0.8-2.5 120-365 24-75 2.4-7.5 350-1090
3″ 75 8-25 0.8-2.5 120-365 24-75 2.4-7.5 350-1090
4″ 102 8-16 0.8-1.6 120-235 24-48 2.4-4.8 350-700
5″ 127 8-13 0.8-1.3 120-190 24-39 2.4-3.9 350-570
6″ 152 8-13 0.8-1.3 120-190 24-39 2.4-3.9 350-570
12“ 280 4-13 0.4-1.3 58-190 12-39 1.2-3.9 175-570

More TPU double coating hose can be offered, pls contact us for more details.
