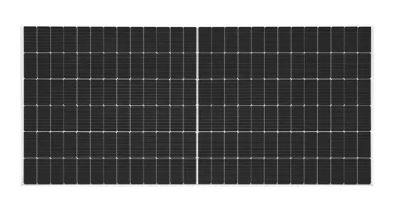

Description
Module Type 156
Max. Power Output 630 W
Max. Module Efficiency 22.5%
Bifaciality /
Power Output Tolerance 0~+3%
Cell Size 182×91 mm
Number of Cells 156 (2*78)
Weight 30.6 kg
Junction Box IP68(3 Diodes)
Temperature Coefficient of Pmax -0.30%/°C
Temperature Coefficient of Voc -0.25%/°C
Temperature Coefficient of Isc -0.046%/°C
Nominal Operating Cell Temperature (NOCT) 45±2°C
Packing Type 40’HQ Container
Pcs/Pallet 31 pcs
Pallet/Container Pal16 trayslet/container
Pcs/Container 496 pcs
Lower LCOE
· N-TOPCon technology: lower degradation, ≥ 30 years life, and lower BOS cost.
Better Temperature Coefficient
· lower temperature coefficient and higher power generation under high-temperature conditions.
PID Resistance
· Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
ZERO LID (Light Induced Degradation)
· The N-type solar cell has no LID naturally, which can increase power generation
Better Low Light Performance
· Higher power output even under low-light environments like on cloudy or foggy days.
Enhanced Mechanical Load
· Heavy snow load up to 5400Pa， wind load up to 2400Pa.
