Description

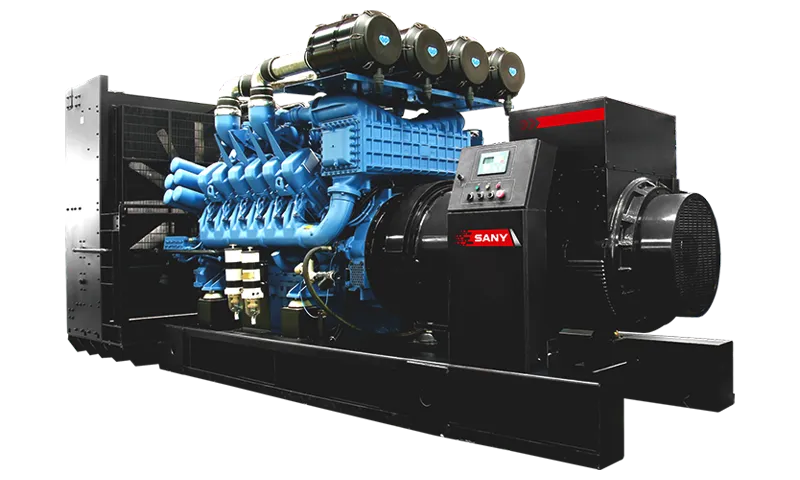

Diesel Genset
Model SYL2900M6K1

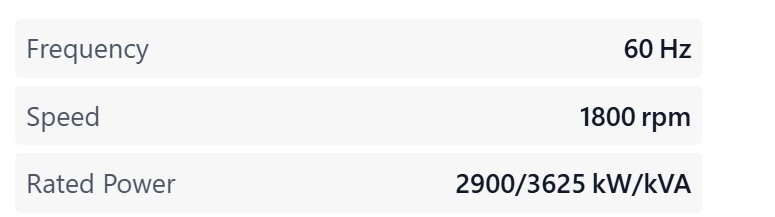

Frequency 60 Hz
Speed 1800 rpm
Rated Power 2900/3625 kW/kVA
Rated Voltage 440 V
Phase 3
Speed Control Type Electronic speed control
Engine Brand MTU
Engine Model 20V4000G83LS
No. of Cylinders 20
Displacement 95.33 L
Bore × Stroke 170×210 mm
Alternator Brand Leroy Somer
Alternator Model LSA 53.2 M12
Length 9000 mm
Width 2300 mm
Height 2550 mm
Net Weight 24500 kg
Stable power generation performance
· excellent workmanship, large power reserve, stable power generation performance.
High safety
· Equipped with a full range of unit protection system and fault display system, easy to operate, to ensure the safety of man and machine.
Strong adaptability
· Highly efficient vibration damping system design absorbs more than 95% of the unit’s vibration, significantly reducing
· the requirements for foundation. Multi-level protection class IP21-23 optional design, can adapt to different server room environment.
