Description

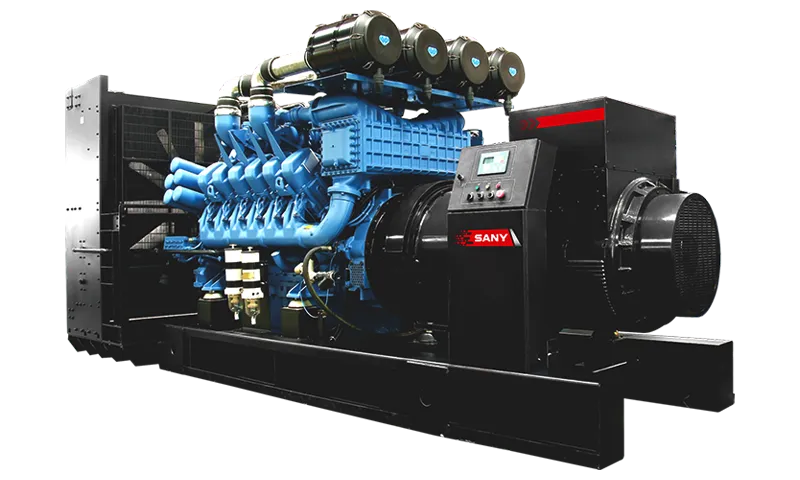

Diesel Genset
Model SYL1670MK1

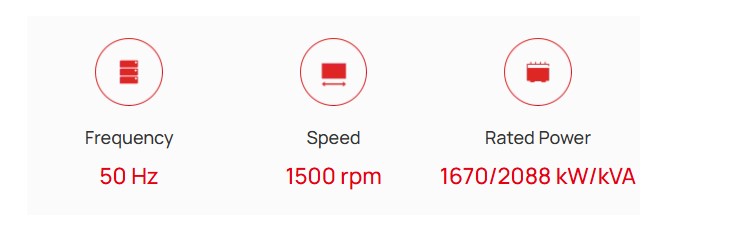

Frequency 50 Hz
Speed 1500 rpm
Rated Power 1670/2088 kW/kVA
Rated Voltage 400 V
Phase 3
Speed Control Type Electronic speed control
Engine Brand MTU
Engine Model 16V4000G23F
No. of Cylinders 16/V
Displacement 76.27 L
Bore × Stroke 170×210 mm
Alternator Brand Leroy Somer
Alternator Model LSA52.3S7
Length 7600 mm
Width 2300 mm
Height 2550 mm
Net Weight 17000 kg
Stable power generation performance
· excellent workmanship, large power reserve, stable power generation performance.
High safety
· Equipped with a full range of unit protection system and fault display system, easy to operate, to ensure the safety of man and machine.
Strong adaptability
· Highly efficient vibration damping system design absorbs more than 95% of the unit’s vibration, significantly reducing
· the requirements for foundation. Multi-level protection class IP21-23 optional design, can adapt to different server room environment.
