Description

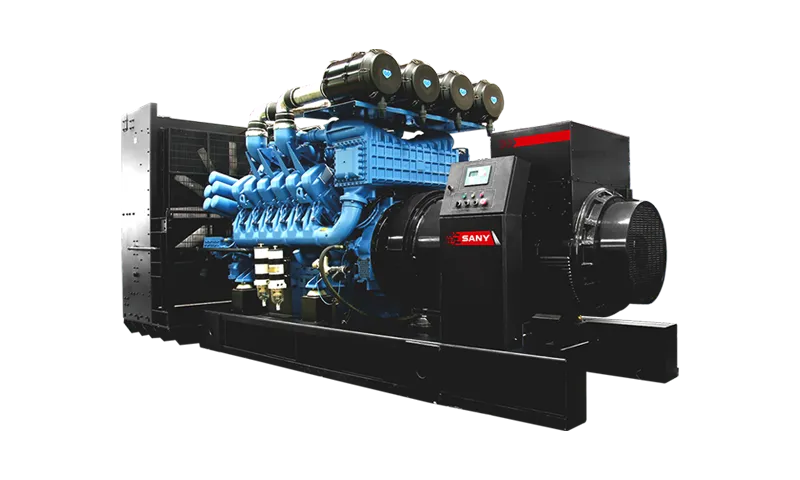

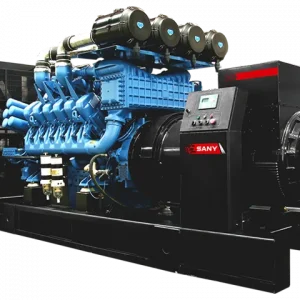

Diesel Genset
Model SYL0700C6K1

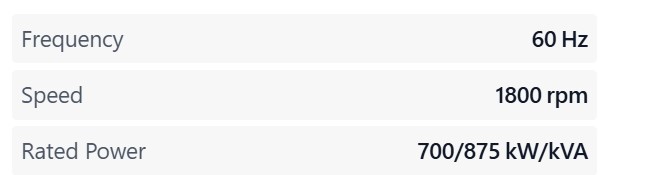

Frequency 60 Hz
Speed 1800 rpm
Rated Power 700/875 kW/kVA
Rated Voltage 440 V
Phase 3
Speed Control Type Electronic speed control
Engine Brand Cummings
Engine Model KTA38-G1B
No. of Cylinders 12
Displacement 37.88 L
Bore × Stroke 159×159 mm
Alternator Brand Leroy Somer
Alternator Model TAL A49C
Length 4250 mm
Width 2050 mm
Height 2450 mm
Net Weight 6000 kg
Stable power generation performance
· excellent workmanship, large power reserve, stable power generation performance.
High safety
· Equipped with a full range of unit protection system and fault display system, easy to operate, to ensure the safety of man and machine.
Strong adaptability
· Highly efficient vibration damping system design absorbs more than 95% of the unit’s vibration, significantly reducing
· the requirements for foundation. Multi-level protection class IP21-23 optional design, can adapt to different server room environment.
