Description

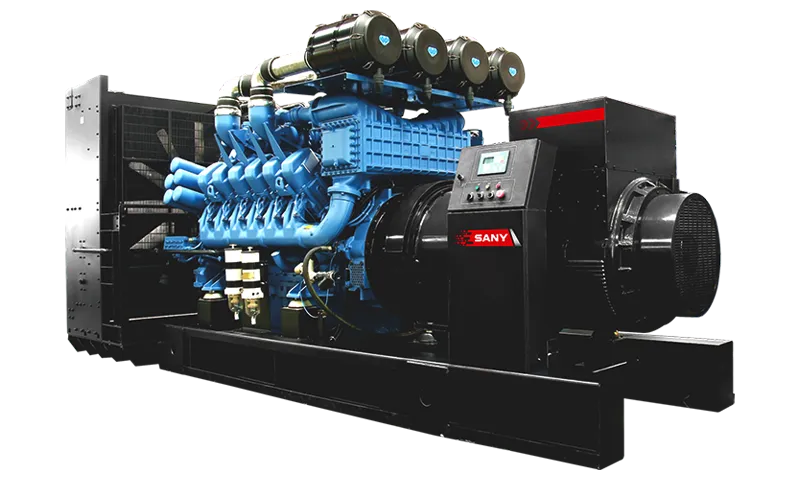

Diesel Genset
Model SYL0600CK1

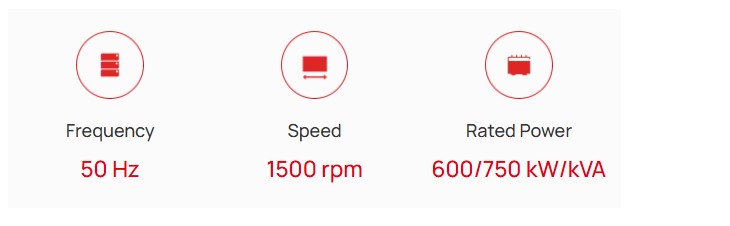

Frequency 50 Hz
Speed 1500 rpm
Rated Power 600/750 kW/kVA
Rated Voltage 400 V
Phase 3
Speed Control Type Electronic speed control
Engine Brand Cummings
Engine Model QSK19-G20
No. of Cylinders 6
Displacement 18.94 L
Bore × Stroke 159×159 mm
Alternator Brand Leroy Somer
Alternator Model TAL A49B
Length 4300 mm
Width 1600 mm
Height 2200 mm
Net Weight 5200 kg
Stable power generation performance
· excellent workmanship, large power reserve, stable power generation performance.
High safety
· Equipped with a full range of unit protection system and fault display system, easy to operate, to ensure the safety of man and machine.
Strong adaptability
· Highly efficient vibration damping system design absorbs more than 95% of the unit’s vibration, significantly reducing
· the requirements for foundation. Multi-level protection class IP21-23 optional design, can adapt to different server room environment.
