Description
Diesel genset
Model SYL0055DK1

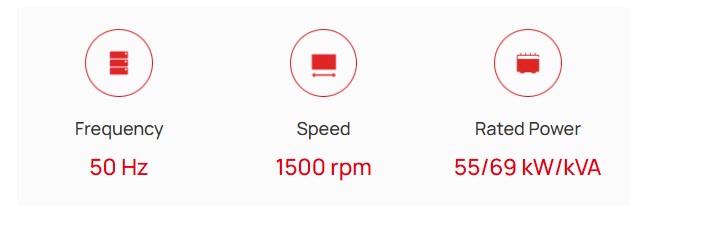

Frequency 50 Hz
Speed 1500 rpm
Rated Power 55/69 kW/kVA
Rated Voltage 400 V
Phase 3
Speed Control Type Electronic speed control
Engine Brand HUNAN DEUTZ
Engine Model BF4M2012C G1
No. of Cylinders 4
Displacement 4.04 L
Bore × Stroke 101×126 mm
Alternator Brand Leroy Somer
Alternator Model TAL A44C
Length 2100 mm
Width 900 mm
Height 1400 mm
Net Weight 1100 kg
Stable power generation performance
· excellent workmanship, large power reserve, stable power generation performance.
High safety
· Equipped with a full range of unit protection system and fault display system, easy to operate, to ensure the safety of man and machine.
Strong adaptability
· Highly efficient vibration damping system design absorbs more than 95% of the unit’s vibration, significantly reducing
· the requirements for foundation. Multi-level protection class IP21-23 optional design, can adapt to different server room environment.
