Description

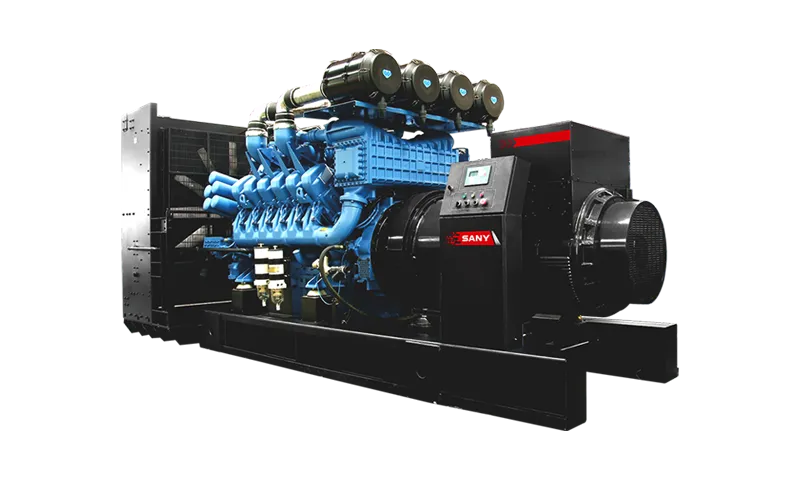

Diesel Genset
Model SYL0020D6K1

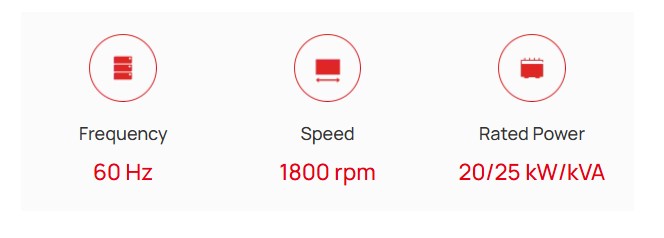

Frequency 60 Hz
Speed 1800 rpm
Rated Power 20/25 kW/kVA
Rated Voltage 440 V
Phase 3
Speed Control Type Electronic speed control
Engine Brand HUNAN DEUTZ
Engine Model BFM3G1
No. of Cylinders 4
Displacement 3.17 L
Bore × Stroke 98×105 mm
Alternator Brand Leroy Somer
Alternator Model TALA40G
Length 1450 mm
Width 700 mm
Height 1100 mm
Net Weight 700 kg
Stable power generation performance
· excellent workmanship, large power reserve, stable power generation performance.
High safety
· Equipped with a full range of unit protection system and fault display system, easy to operate, to ensure the safety of man and machine.
Strong adaptability
· Highly efficient vibration damping system design absorbs more than 95% of the unit’s vibration, significantly reducing
· the requirements for foundation. Multi-level protection class IP21-23 optional design, can adapt to different server room environment.
