Description
Parameters

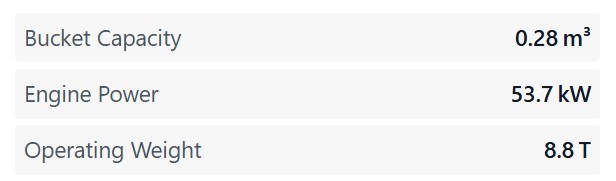

Arm Digging Force 40.5 kN
Bucket Capacity 0.28 m³
Bucket Digging Force 72.7 kN
Carrier Wheel on Each Side 1
Engine Displacement 3.318 L
Engine Model Yanmar 4TNV98CT
Engine Power 53.7 kW
Fuel Tank 100 L
Hydraulic Tank 120 L
Operating Weight 8.8 T
Radiator 12.7 L
Standard Boom 3.52 m
Standard Stick 2.05 m
Thrust Wheel on Each Side 5
Features
- Standard hydraulic quick change pipeline, making the replacement of attachments more convenient. The auxiliary pipe flow is adjustable and widely used in various attachments.
- The working mode can be changed on the monitor, maximizing the operating efficiency and reducing fuel consumption.
- Standard suspension seat, multi-functional proportional control handle, integrated button panel. Ergonomic analysis aided design and uncomplicated and comfortable operation.
- The tested and mature hydraulic parts and the customized imported engine can ensure the machine’s reliability under harsh working conditions.
