Description
Parameters

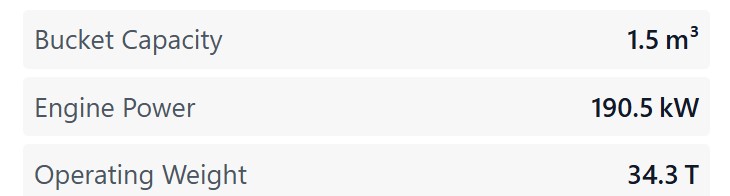

Arm Digging Force 170 kN
Bucket Capacity 1.50 m³
Bucket Digging Force 220 kN
Carrier Wheel on Each Side 9
Engine Displacement 7.79 L
Engine Model 6HK1
Engine Power 190.5 kW
Fuel Tank 540 L
Hydraulic Tank 380 L
Operating Weight 34.3 T
Radiator 31.9 L
Standard Boom 6.47 m
Standard Stick 3.2 m
Thrust Wheel on Each Side 2
Features
- Powerful, robust and reliable powertrain & hydraulic components are applied for the most demanding applications. Selectable working modes match machine performance to the application, maximizing productivity.
- Through the accumulation of 15 years of experience and the “three-in-one” design and test system for large excavators of SANY, the operating life is more than 15,000H under mining working conditions.
- Anti-corrosion coating, Independent extra-large radiator, High-capacity Multi-stage Filtration System.
- Operation interface upgrade, intelligent operation interface of fashion technology, simpler and more convenient.
- Optimized positive flow hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%.
