Description
Parameters

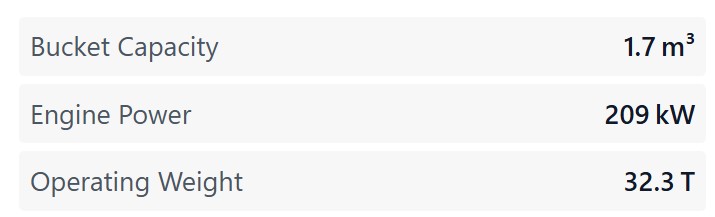

Arm Digging Force 153kN
Bucket Capacity 1.7 m³
Bucket Digging Force 204 kN
Carrier Wheel on Each Side 2
Engine Displacement 8.9 L
Engine Model CUMMINGS QSL9
Engine Power 209 kW
Fuel Tank 540 L
Hydraulic Tank 300 L
Operating Weight 32.3 T
Radiator 36 L
Standard Boom 6.15 m
Standard Stick 3.2 m
Thrust Wheel on Each Side 8
Features
- Powerful, robust and reliable powertrain & hydraulic components are applied for the most demanding applications. Selectable working modes match machine performance to the application, maximizing productivity.
- Through the accumulation of 15 years of experience and the “three-in-one” design and test system for large excavators of SANY, the operating life is more than 15,000H under mining working conditions.
- Anti-corrosion coating, Independent extra-large radiator, High-capacity Multi-stage Filtration System.
- Operation interface upgrade, intelligent operation interface of fashion technology, simpler and more convenient.
- Optimized positive flow hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%.
