Description
Arm Digging Force 10 KN

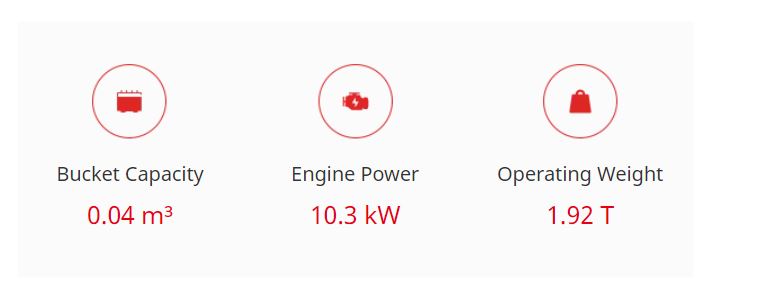

Bucket Capacity 0.04 m³
Bucket Digging Force 16.6 kN
Carrier Wheel on Each Side /
Engine Displacement 0.854 L
Engine Model Yanmar 3TNV70
Engine Power 10.3 KW
Fuel Tank 20 L
Hydraulic Tank 21 L
Operating Weight 1.92 T
Radiator 5.4 L
Standard Boom 1.81 m
Standard Stick 1.13 m
Thrust Wheel on Each Side 3
Superior Performance
· More than 2000 hours of excavation field experiment, and over 800,000 times key components fatigue test.
Superior Adaptability
· Zero tail, retractable undercarriage, and swing boom make operating in corners and other tight spaces easier.
Easy Operation
· The load-sensitive hydraulic system accurately matches the engine with the main pump for smooth movement coordination.
Strong Power
· Exclusive Yanma high-power engine, digging, and walking are more powerful.
