Description

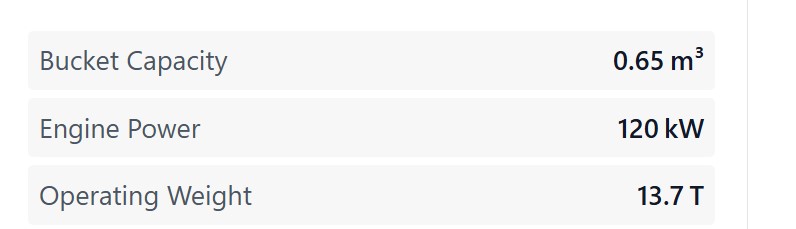

Arm Digging Force 75kN
Bucket Capacity 0.65m³
Bucket Digging Force 102.3kN
Carrier Wheel on Each Side /
Engine Displacement 5.193L
Engine Model 4HK1X
Engine Power 120kW
Fuel Tank 240L
Hydraulic Tank 150L
Operating Weight 13.7T
Radiator 10L
Standard Boom 4.6m
Standard Stick 2.1m
Thrust Wheel on Each Side /
With a dual-pump, dual-circuit constant power control system, the engine can provide a strong operating force. Optimized operation performance of the engine reduces power loss.
- Adopting a new intelligent dual-core controller equipped with the original DOMCS dynamic optimization smart control system, advanced control theories such as neural network, fuzzy PID, and variable speed integral is adopted for the hydraulic system. Perfect real-time matching between the engine and pump is achieved based on load conditions, bringing efficiency and fuel saving while ensuring comfortable operation.
- Both the front and rear axles adopt an independent hydraulic braking circuit. When one circuit loses braking capacity due to unexpected reasons such as leakage or pipe explosion, the braking performance of the other circuit is not affected, making your walking safer and more guaranteed.
- Customers can choose any combination of outriggers and dozer blades according to their own needs to increase the stability of the machine during work.The automatic cruise control function can improve the comfort of long-distance driving. When the automatic cruise function is activated, the system detects a brake signal and exits the cruise.
- Adopting advanced control technology, the output shaft speed is converted into a pressure signal during driving to confirm the current speed, ensure the appropriate transmission ratio of the gearbox gears, prevent impacts caused by speed gear mismatch, extend the service life of the axle and gearbox, and improve comfort.
- Alarm alerts surrounding personnel to pay attention, effectively increasing safety during reversing. The alarm sound cannot be turned off in walking mode, and it can be selected whether to turn it off in working mode to balance safety and comfort effectively.
- The standard air conditioner keeps in-cab air fresh. The quick temperature control ensures a comfortable temperature in cab all the year round.
