Description
Parameters
Engine Power 84kW
Engine Model Isuzu 4JJ1
Engine Displacement 2.999L
Radiator 27.8 L
Am Digging Force 67kN
Standard Stick 2.5m
Standard Boom 4.6m
Carrier Wheel on Each Side 2
Thrust Wheel on Each Side 7
Hydraulic Tank 150L
Fuel Tank 240L

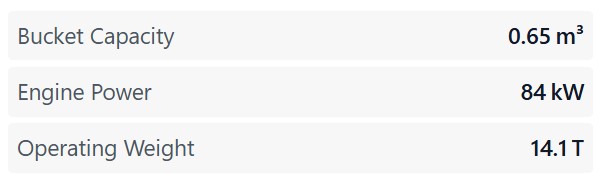

Operating Weight 14.1T
Bucket Capacity 0.65m³
Bucket Digging Force 103kN
Features
- With a dual-pump, dual-circuit constant power control system, the engine can provide a strong operating force. Optimized operation performance of the engine reduces power loss.
- Quick-change pipeline +2 sets of auxiliary pipelines are standard, and various attachments can be switched at will.
- Ultra-small turning radius, full bucket of materials can turn 360 within 3.7m width, which is more suitable for narrow space operations such as one-way streets and municipal maintenance.
- The standard air conditioner keeps in-cab air fresh. The quick temperature control ensures a comfortable temperature in cab all the year round.
