Description

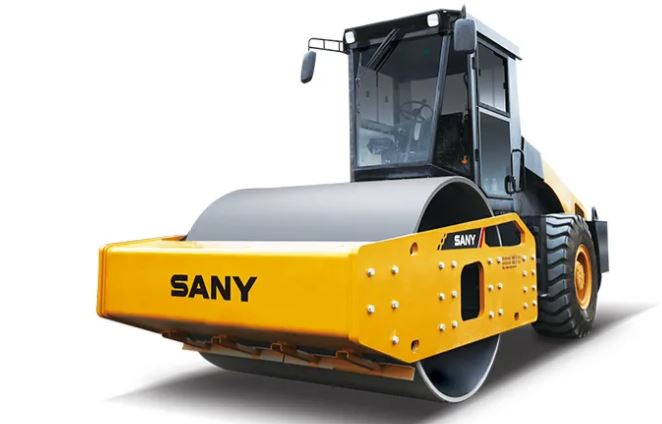

Type Single Drum (Single Drive)
Compaction Mechanism

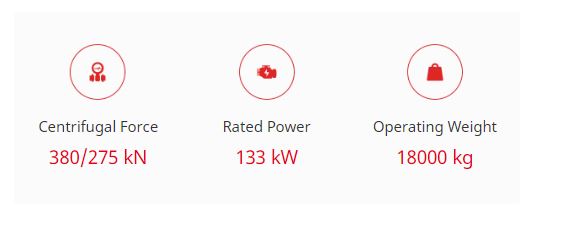

Centrifugal Force 380/275 kN
Drum Width 2130 mm
Nominal Amplitude 2.0/1.0 mm
Vibration Frequency 29/35 Hz
Engine
Emission China III
Engine Model DONGFENG CUMMINS QSB5.9-C180-33
Rated Power 133 kW
Maneuver Ability
Theoretical Gradeability Vibratory 45 %
Travel Speed 0~6 / 0~8 / 0~4.0 / 0~5.5 km/h
Weight and Load
Operating Weight 18000 kg
Weight at Drum 12400 kg
Weight at Rear Axle 5600 kg
High Efficiency
· 10% greater excitation force than other products in the same category resulting in 16.7% greater production.
Extended Life Time
· The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
· The engine air filter is raised and the air is filtered twice to protect the engine.
· The hydraulic system contains three stage filtration.
Operator Comfort
· Cab mounted on vibration damping mounts
· Cab temperature control
· Operator control forces have been reduced
Safety Features
· Rounded bumpers front and rear
· The large rear glass and sloped hood for greater visibility
