Description

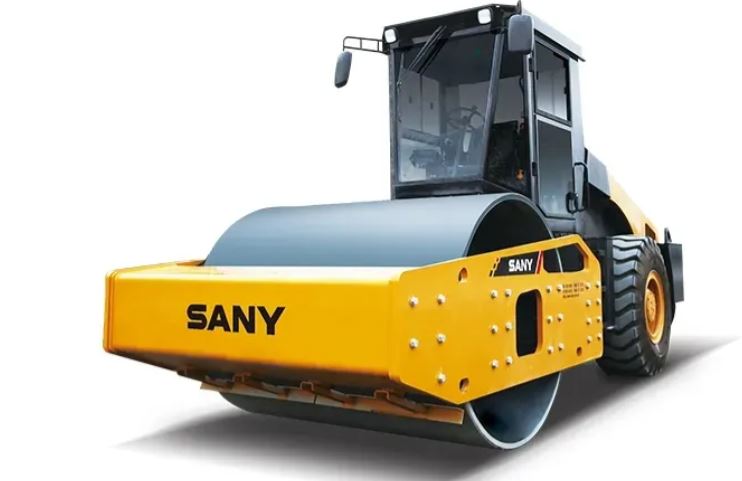

Type Single Drum (Single Drive)
Compaction Mechanism

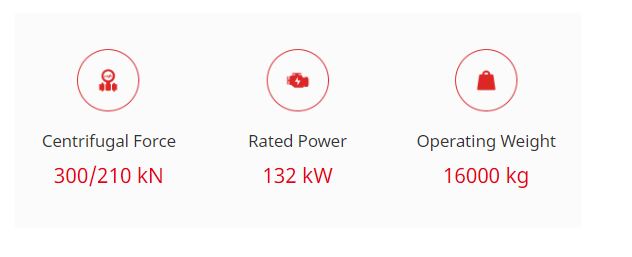

Centrifugal Force 300/210 kN
Drum Width 2130 mm
Nominal Amplitude 1.9/1.0 mm
Vibration Frequency 33/36 Hz
Engine
Emission /
Engine Model DONGFENG CUMMINS 6BTAA5.9-C180
Rated Power 132 kW
Maneuver Ability
Theoretical Gradeability Vibratory 35 %
Travel Speed 0~12 / 0~5.5 km/h
Weight and Load
Operating Weight 16000 kg
Weight at Drum 8000 kg
Weight at Rear Axle 8000 kg
High Efficiency
· 10% greater excitation force than other products in the same category resulting in 16.7% greater production.
Extended Life Time
· The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
· The engine air filter is raised and the air is filtered twice to protect the engine.
· The hydraulic system contains three stage filtration.
Operator Comfort
· Cab mounted on vibration damping mounts
· Cab temperature control
· Operator control forces have been reduced
Safety Features
· Rounded bumpers front and rear
· The large rear glass and sloped hood for greater visibility
