Description
Parameters

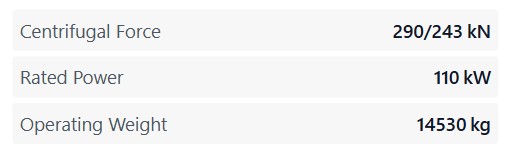

Operating Weight 14530 kg
Weight at Drum 8500 kg
Weight at Rear Axle 6030 kg
Centrifugal Force 290/243 kN
Drum Width 2130 mm
Nominal Amplitude 1.9/1.0 mm
Vibration Frequency 32/40 Hz
Theoretical Gradeability Vibratory 58 %
Travel Speed 0~3.8/0~5/0~6.5/0~9.5 km/h
Emission EURO III
Engine Model CUMMINS
Rated Power 110 kW
Features
- 10% greater excitation force than other products in the same category results in 16.7% greater production.
- The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
- The engine air filter is raised and the air is filtered twice to protect the engine.
- The hydraulic system contains three-stage filtration.
- The cab is mounted on the vibration-damping mount.
- Cab temperature control is available.
- Operator control forces have been reduced.
- Rounded bumpers at the front and rear
- Large rear glass and sloped hood for greater visibility
