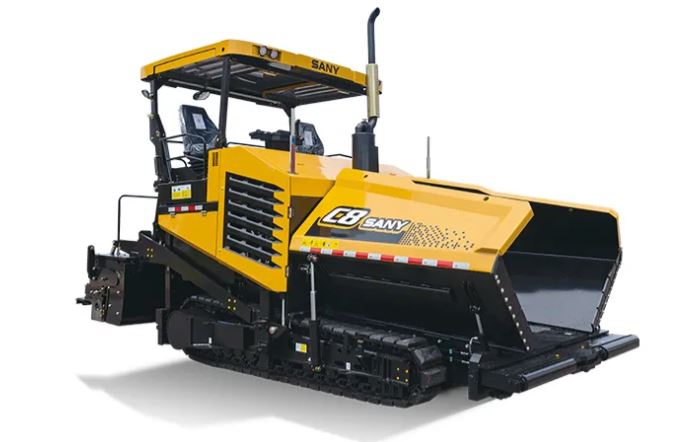

Description
Heating Mode Electric Heated

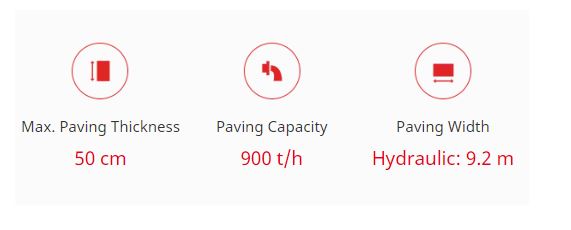

Max. Paving Thickness 50 cm
Paving Capacity 900 t/h
Paving Width Hydraulic: 9.2 m
Rated Power of Engine 180 kW
Rated Speed of Engine \ rpm
Travel Speed 0~2.4 km/h
Working Speed 1~16 m/min
· 180kW engine satisfies demanding power requirements.
· The high-rigidity screed is equipped with an advanced four-motor vibrating system to ensure that the speed of the main section and the telescopic side section is consistent to achieve high-level operation.
· Good rigidity of blade bottom plate, strong bending resistance of tool holder, compacted and uniform paving surface.
· Hydraulic lifting auger distribution system. Press one button for the best anti-segregation position;
· An ultra-narrow auger compartment, variable diameter, and special-shaped blade design effectively reduce material separation.
· The high-pressure distributing hydraulic system is resistant to high pressure; the external generator has an excellent cooling effect, and the motor has a low failure rate.

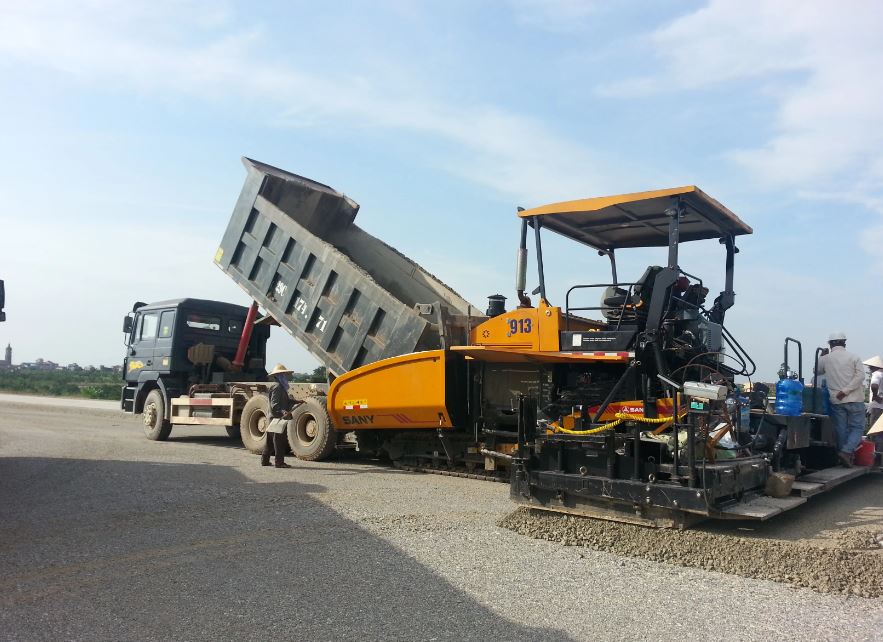

· Large hopper, fast feeding; Suitable feeding height, smooth feeding.
· Paving capability of over 900 tons per hour.
· Capable of paving a mat up to 50 cm thick! The highest in the industry.
· 2 people can assemble the 9.5m bolt-on screed in 2 hours.
· The conveyor is made of thickened, wear-resistant steel plate with a service life in excess of 2000 hours.
· Designed to endure non-stop paving operations in 50-degree Celsius temperatures.
