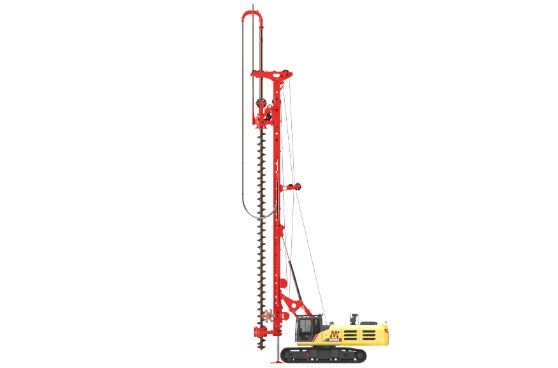

SR285MIII Rotary Drilling Rig

SR285MIII Rotary Drilling Rig

Brand: SANY Rotary Drilling Rig











View Inquiry Quote Products List
Categories: ,

Description

CFA Mode
Crowd Force                                          260 kN
Stroke                                                     19000 mm
Overall Height                                      33075 mm
Max. Pile Diameter                             1200 mm
Max. Pile Depth                                   27 m
Operating Weight                                108 T
Line Pull                                                355 kN
Rated Speed                                          5~24 rpm
Rated Output Torque                          285 kN·m

Main Winch
Lifting Capacity                                   330 kN
Max. Line Speed                                 70 m/min
Rope Diameter                                    36 mm

Main Chassis
Base Engine                                         6WG1
Engine Power                                       300/1800 kW/rpm
Emission Regulation                          COM III

Low Headroom
Crowd Force                                        260 kN
Stroke                                                   4600 mm
Overall Height                                    11655 mm
Max. Pile Diameter                            2200 mm
Max. Pile Depth                                  96 m
Operating Weight                               355 T
Line Pull                                               270 kN
Rated Speed                                        5~24 rpm
Rated Output Torque                        285 kN·m

Overall Machine
Transport Width                                3475 mm
Transport Height                               3625 mm

Standard Mode
Crowd Force                                        260 kN
Stroke                                                    17100 mm
Overall Height                                     25470 mm
Max. Pile Diameter                             2200 mm
Max. Pile Depth                                   94/61 m
Operating Weight                                105 T
Line Pull                                                355 kN
Rated Speed                                          5~24 rpm
Rated Output Torque                          285 kN·m

High Efficiency Drilling

· The preferred model in the field of soil and rock layer construction, smooth compound movement control, adjustable torque and rotation speed of rotary drive, suitable for different kinds of geological conditions and construction methods.

Strong Power

· Engines collaboratively developed with world’s leading suppliers fully meet Tier IV/ III emission regulations, offering long lasting, stable and reliable power output with low fuel consumption.

Full Stroke Crowd System

· 15m extra-long stroke, featuring fast crowding and pulling function, suitable for long casing construction in beach, pebble, backfill formation.

Kelly Visualization

· Real-time display the location of the locking device while using the inter-lock Kelly bar, avoiding accidental damage.

Floating Pretension Function

· The wire rope is always tensioned while working, extending the service life of it.

Smart Screen

· HD touch screen, 3ms refresh frequency, smooth animation display.

Centralized Automatic Lubricating System

· Grease qualitatively and regularly, keeping the machine in well-lubricated state.
