SR125MⅤ Rotary Drilling Rig

 Back to shop
SR125MⅤ Rotary Drilling Rig

SR125MⅤ Rotary Drilling Rig

Brand: SANY Rotary Drilling Rig















View Inquiry Quote Products List
Categories: ,

Description

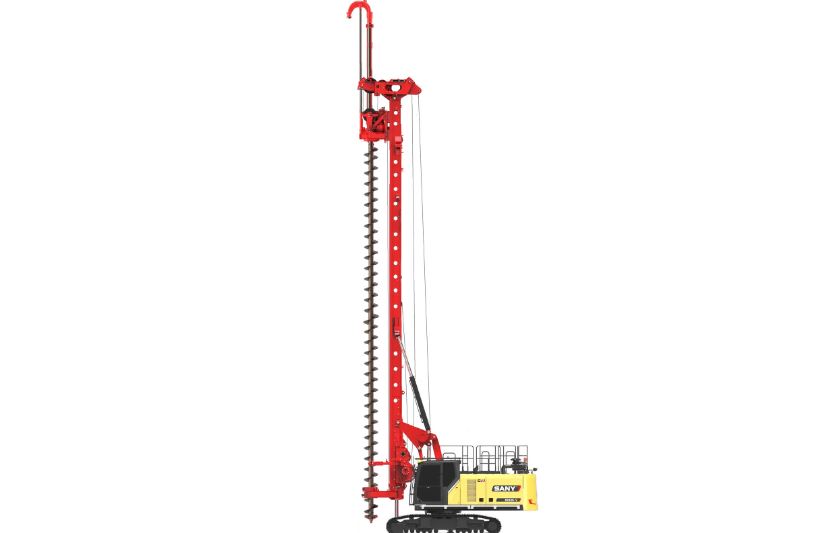

CFA Mode
Crowd Force                                         120 kN
Stroke                                                     14000 mm
Overall Height                                      25120 mm
Max. Pile Diameter                             900 mm
Max. Pile Depth                                   21.8 m
Operating Weight                                36 T
Line Pull                                                150 kN
Rated Speed                                          6~40 rpm
Rated Output Torque                          130 kN·m

Main Winch
Lifting Capacity                                   140 kN
Max. Line Speed                                 80 m/min
Rope Diameter                                    24 mm

Main Chassis
Base Engine                                        康明斯B4.5
Engine Power                                      149/2000 kW/rpm
Emission Regulation                          V阶段

Low Headroom
Crowd Force                                        120 kN
Stroke                                                   2600 mm
Overall Height                                    9600 mm
Max. Pile Diameter                            1500 mm
Max. Pile Depth                                  13.5  m
Operating Weight                               30 T
Line Pull                                               150 kN
Rated Speed                                        6~40 rpm
Rated Output Torque                        130 kN·m

Overall Machine
Transport Width                                2550 mm
Transport Height                               3450 mm

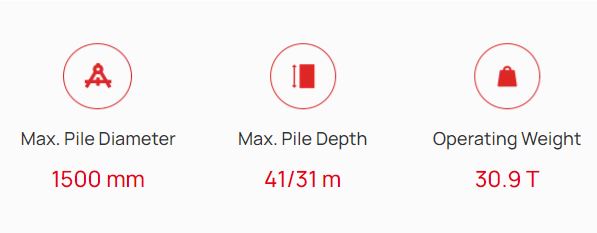

Standard Mode
Crowd Force                                        120 kN
Stroke                                                    3700 mm
Overall Height                                     15320 mm
Max. Pile Diameter                             1500 mm
Max. Pile Depth                                   41/31 m
Operating Weight                                30.9 T
Line Pull                                                150 kN
Rated Speed                                          6~40 rpm
Rated Output Torque                          130 kN·m

High Efficiency Drilling

· The preferred model in the field of soil and rock layer construction, smooth compound movement control, adjustable torque and rotation speed of rotary drive, suitable for different kinds of geological conditions and construction methods.

Strong Power

· Engines collaboratively developed with world’s leading suppliers fully meet Tier IV/ III emission regulations, offering long lasting, stable and reliable power output with low fuel consumption.

Full Stroke Crowd System

· 15m extra-long stroke, featuring fast crowding and pulling function, suitable for long casing construction in beach, pebble, backfill formation.

Kelly Visualization

· Real-time display the location of the locking device while using the inter-lock Kelly bar, avoiding accidental damage.

Floating Pretension Function

· The wire rope is always tensioned while working, extending the service life of it.

Smart Screen

· HD touch screen, 3ms refresh frequency, smooth animation display.

Centralized Automatic Lubricating System

· Grease qualitatively and regularly, keeping the machine in well-lubricated state.
