Description
Dimensions

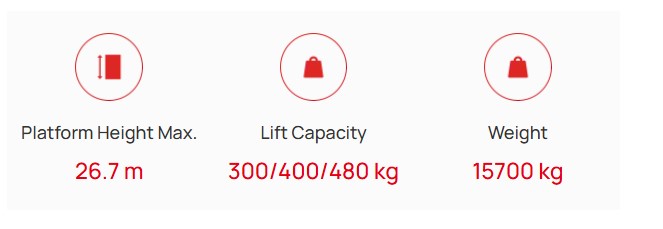

Platform Height Max. 26.7 m
Working Height Max. 28.7 m
Horizontal Outreach Max. 20.3 m
Length (stowed) 12.3 m
Width (stowed) 2.49 m
Height (stowed) 3.05 m
Platform Dimension 2.44*0.91 m*m
Ground Clearance 0.41 m
Wheel Base 3.05 m
Lift Capacity 300/400/480 kg
Turntable Tail Swing 1.5 m
Jib Rotation +70/-65 °
Turntable Rotation 360 °
Platform Rotation 180 °
Performance
Tilt Sensor Activation X-5/Y-5 °
Turning Radius Max. (Inside/Outside) 3.66/6.86 m
Gradeability 45 %
Drive Speed-stowed 0-6 km/h
Drive Speed-raised 0-0.8 km/h
Power
Drive*Steer 4*2 WD*WS
Fuel Tank Capacity 160 L
Engine 55.4/2600/KUBOTA/China Stage 4 kW/rpm
Battery /V/Ah
Charger (Input) / V AC
Others
Weight 15700 kg
