Description
Dimensions

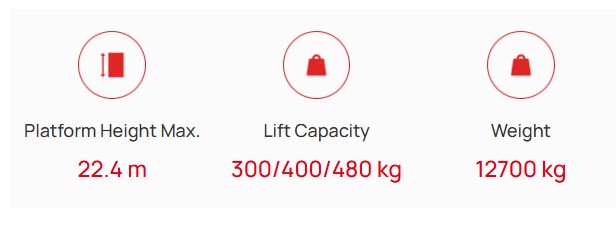

Platform Height Max. 22.4 m
Working Height Max. 24.4 m
Horizontal Outreach Max. 16.5 m
Length (stowed) 11 m
Width (stowed) 2.45 m
Height (stowed) 2.7 m
Platform Dimension 2.44*0.91 m*m
Ground Clearance 0.31 m
Wheel Base 2.5 m
Lift Capacity 300/400/480 kg
Turntable Tail Swing 1.5 m
Jib Rotation +70/-65 °
Turntable Rotation 360 °
Platform Rotation 180 °
Performance
Tilt Sensor Activation X-5/Y-5 °
Turning Radius Max. (Inside/Outside) 2.4/5.5 m
Gradeability 45 %
Drive Speed-stowed 0-5.5 km/h
Drive Speed-raised 0-1.1 km/h
Power
Drive*Steer 4*2 WD*WS
Fuel Tank Capacity 160 L
Engine 36.5/2000/KUBOTA/China Stage 4 kW/rpm
Battery /V/Ah
Charger (Input) V AC
Others
Weight 12700 kg
