Description
Ship Marine Swing Cylinder Type Hydraulic Driving Steering Gear
Hydraulic Steering Gear consists of Steering mechanism, power system and control system.
Marin type of Steering mechanism:
1. Four-ram hydraulic steering gear
2. Fork type（two-ram) hydraulic steering gear）
3. Swing/tilt cylinder type
4.Rotary Vane Steering Gear
Options of pilot type for control system:
1.Follow-up pilot
2.Auto pilot
3.Emergency manual pilot
4.Engine drive pilot
Steering time and power: comply to SOLAS rules, or better as per customer’s requirements

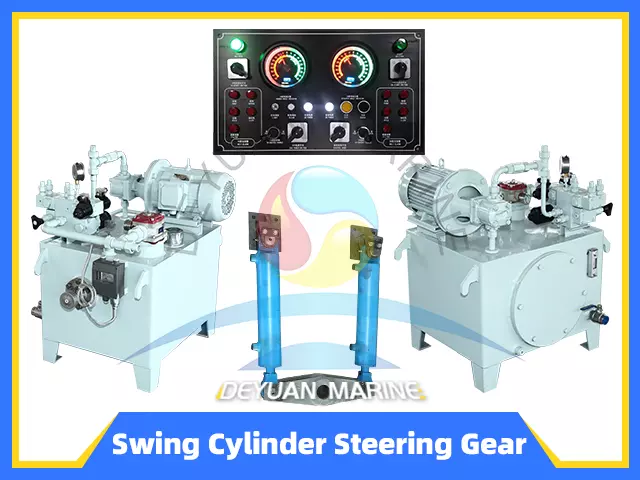

In this case here, the steering gear system consists of Swing/tilt cylinder type steering mechanism, two motor pump packs, reserve oil tank, control panel and start&alarm boxes.
There are two or three type of swing type cylinder steering gear:
1.Two cylinder single tiller
2.Two cylinder double tillers
3.Two cylinder two tillers
4.In this case, it is two cylinder single tiller, if hope to use type but require two tillers, we could arrange two set of the means of “Two cylinder single tiller”.
If you happen to need a steering gear system, pls do not hesitate to contact us for full service.
| Nominal Torque | Turning Angle | Turning Time | Max Working Oil Pressure |
Gear Pump/Motor | Rudder Tiller Radius |
Diameter of Fadius |
||
| Type | No | Output | ||||||
| (kn.m) | (°) | (S) | (Mpa) | (kw) | (mm) | (mm) | ||
| 10 | ±35 | ≤28/20 | 6.5 | CBN-316 | 2 | 1.1 | 240 | 75-130 |
| 16 | 10.2 | CBN-316 | 1.1 | 240 | 75-130 | |||
| 20 | 12 | CBN-320 | 2.2 | 240 | 75-130 | |||
| 25 | 10.9 | CBN-320 | 2.2 | 290 | 75-150 | |||
| 30 | 9.8 | CBN-320 | 3 | 290 | 75-150 | |||
| 40 | 10.3 | CBN-420 | 3 | 360 | 1160 | |||
| 50 | 12.5 | CBN-420 | 4 | 480 | 170 | |||
| 63 | 8.4 | CBN-420 | 4 | 480 | 175 | |||
More swing type electric hydraulic steering gear can be offered,pls contact us for more details.
