Description
Country Standard
Power Frequency 50 HZ
Power Voltage 380V(±10%) V
Working Speed
The Power of Trolleying Mechanism 5.5 kW
The Speed of Trolleying Mechanism 0~60 m/min
The Power of Slewing Mechanism 2×5.5 kW
The Speed of Slewing Mechanism 0~0.7 r/min
The Power of Hoisting Mechanism 45 kW
The Speed of Hoisting Mechanism 0-100 m/min
Operation
Tip Load at Max. Jib Length 1.8 T
Max. Height Under Hook 270 m
Max. Jib Length 65 m

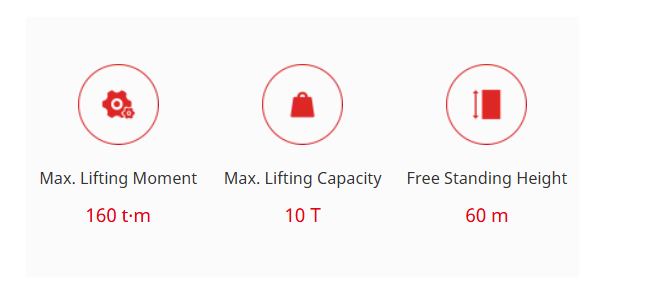

Max. Lifting Moment 160 t·m
Max. Lifting Capacity 10 T
Free Standing Height 60 m
Strong
· Superior performance
Safe
· Tower group anti-collision technology
Intelligent
· Distributed control system
Economical
· The crane boom has a long service life due to its steel structure.
