Description

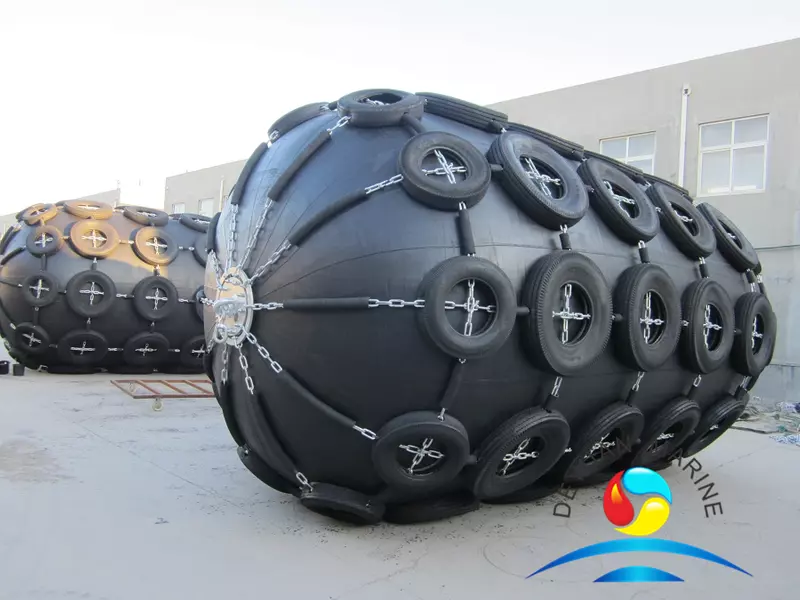

Net Type Inflatable Yokohama Rubber Fender
Inflatable rubber fenders consist of an out rubber, reinforcement synthetic-tyre-cord layer, and inner rubber, vulcanized firmly.
The Yokohama rubber fender out rubber are used to protect the cord layers and inner rubber from abrasion and other external forces. This Marine Rubber Fender’s rubber compound have sufficient tensile and tear resistance strength to withstand anticipated weather conditions and severe usage.
The Inflatable Marine Rubber Fender reinforcement synthetic-tyre-cord layer strong enough to maintain the internal air pressure of the fender
The Net type rubber fender inner rubber layer seals the pressurized air inside the Inflatable rubber fender.
Yokohama marine rubber fender diameter is 2500mm and larger equipped with safety valve for releasing excess internal pressure when the floating rubber fenders are over-compressed accidentally.
If you need more information of inflatable boat rubber fender please contact us directly
Here is the Inflatable Yokohama Rubber Fender data for your reference:
| Type | Initial pressure(Po)is 0.05Mpa | Initial pressure(Po)is 0.05Mpa | ||||
| weight(kg) | R(KN) | GEA(KJ) | Height(kg) | R(KN) | GEA(KJ) | |
| 0.5*1.0 | 25 | 64 | 6 | 25 | 83 | 8 |
| 0.6*1.0 | 32 | 74 | 8 | 32 | 96 | 11 |
| 0.7*1.5 | 50 | 137 | 17 | 50 | 178 | 24 |
| 1.0*1.5 | 80 | 182 | 32 | 80 | 235 | 44 |
| 1.0*2.0 | 100 | 257 | 45 | 125 | 335 | 63 |
| 1.2*2.0 | 120 | 297 | 63 | 165 | 386 | 86 |
| 1.35*2.5 | 165 | 427 | 102 | 226 | 554 | 140 |
| 1.5*3.0 | 315 | 597 | 153 | 370 | 751 | 211 |
| 1.7*3.0 | 405 | 639 | 191 | 436 | 860 | 263 |
| 2.0*3.5 | 590 | 875 | 308 | 632 | 1138 | 424 |
| 2.5*4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5*5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0*5.0 | 1880 | 2104 | 1210 | 2155 | 2709 | 1571 |
| 3.0*6.0 | 2160 | 2583 | 1485 | 2470 | 3292 | 1888 |
| 3.3*4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3*6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3*6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
Note:The weight of the ball by ball weight(without jacket),the weight of error of ±10%,reaction force error of ±10%
