Description

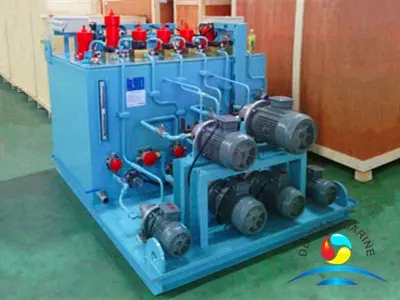

Multi-Winch Drive Centralized Control Hydraulic Power Pack Unit
The hydraulic power unit is a hydraulic device which consists of hydraulic pump, driving motor, fuel tank, directional valve, throttle valve, overflow valve, etc.
Hydraulic Power Unit is an independent hydraulic device, it is required by the drive device (host) to supply oil and control the direction of oil, pressure and flow. It is suitable for the host and hydraulic devices can be separated under a variety of hydraulic machinery, driven by the motor pump Rotate, pump oil from the tank after the oil, the mechanical energy into hydraulic oil pressure energy.
The hydraulic system is characterized by wide application, high efficiency and simple structure in power transmission. The main task of the hydraulic system is to shift the power from one form to another.
Deyuan marine can design the hydraulic power unit according to yr requirement.
In Multi point mooring system, usually several winches to work together, each winch can use a independent power drive supply, also could use an integrated hydraulic power pack unit to drive all of the winches when the winches are hydraulic motor droven.
Hydraulic power pack unit service as a power source for winch.
| Model | Hydraulic Power Unit (mm) | n-Ф s | ||||
| A | B | C | D | E | ||
| 1.1KW | 750 | 730 | 650 | 690 | 510 | 4-Ф10 |
| 1.5KW | 750 | 730 | 650 | 690 | 510 | 4-Ф10 |
| 2.2KW | 780 | 730 | 650 | 690 | 510 | 4-Ф10 |
| 3KW | 780 | 730 | 650 | 690 | 510 | 4-Ф10 |
| 4KW | 850 | 730 | 650 | 690 | 510 | 4-Ф10 |
| 5.5KW | 900 | 730 | 650 | 690 | 510 | 4-Ф10 |
| 7.5KW | 920 | 890 | 845 | 860 | 510 | 4-Ф10 |
| 11KW | 1020 | 1000 | 945 | 970 | 610 | 4-Ф12 |
| 15KW | 1020 | 1000 | 945 | 970 | 610 | 4-Ф12 |
| 18.5KW | 1220 | 1200 | 1100 | 1160 | 750 | 4-Ф12 |
| 22KW | 1220 | 1200 | 1100 | 1160 | 750 | 4-Ф12 |
More marine winch hydraulic power unit can be offered,pls contact us for more details.
