Description

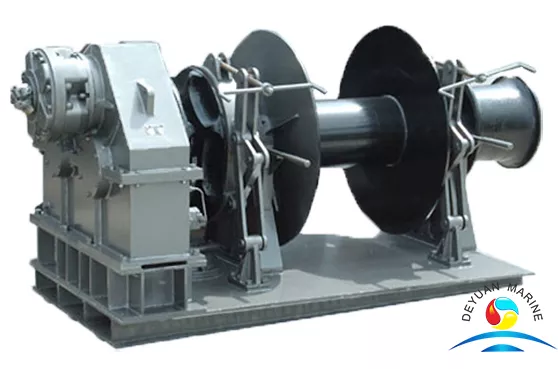

Marine Hydraulic Combined Anchor Windlass with Single Gypsy and Drum
When make a anchor windlass and mooring winch together, it becomes the called combined anchor windlass with winch. The combined anchor windlass and winch are usually installed in the main deck of tern or poop deck.
This combined anchor windlass is to be powered by hydraulic motor, the winch were designed for pulling back or letting go of mooring wires.
Single gypsy (cable lifter) was designed to grip the chain cable.
Hydraulic power pack unit,hydraulic brake clutch,remote control,auto-tension are optional accessories, customers can choose any or not on their request.
CCS,ABS,BKI,BV,LR,DNV,RINA etc certificates are for selections too.
Hydraulic Combined Anchor Windlasses Parameter:
| Type | Chain Drum | Motor Power | ||
| Chain Dia | Load | Speed | (kW) | |
| (mm) | (kN) | (m/min) | ||
| AW0E22 | 22 | 20.6 | 12 | 11 |
| AW0E24 | 24 | 24.5 | 12 | 11 |
| AW0E26 | 26 | 28.7 | 12 | 11 |
| AW0E28 | 28 | 33.3 | 12 | 11 |
| AW0E30 | 30 | 38.3 | 12 | 18.5 |
| AW0E32 | 32 | 43.5 | 12 | 18.5 |
| AW0E34 | 34 | 49.1 | 12 | 22 |
| AW0E36 | 36 | 55.1 | 12 | 30 |
| AW0E38 | 38 | 61.4 | 12 | 30 |
| AW0E40 | 40 | 68 | 12 | 30 |
| AW0E22/3 | 22 | 23 | 12 | 11 |
| AW0E24/3 | 24 | 27.4 | 12 | 15 |
| AW0E26/3 | 26 | 32.1 | 12 | 18.5 |
| AW0E28/3 | 28 | 37.2 | 12 | 18.5 |
| AW0E30/3 | 30 | 42.8 | 12 | 22 |
| AW0E32/3 | 32 | 48.6 | 12 | 30 |
| AW0E34/3 | 34 | 54.9 | 12 | 30 |
