Description

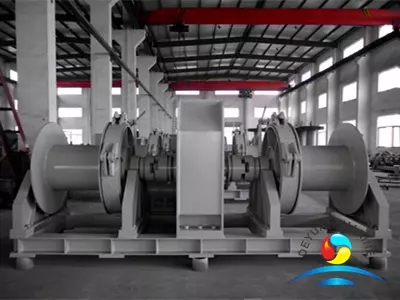

Marine Electric Double Drum Mooring Winch
Electric mooring winch is widely used in the heavy work and the need of high traction. The motor for double drums electric winch is driven by the reducer. Each drum has independent band brake and clutch, and run independently.
In order to meet the needs of lifting, traction and rotary operation, there are also double drum and multi drum winches. And if the winch with the gypsy, that it becomes the combined mooring winch and windlass.
D
eyuan marine can provide you with all kinds of electric winches with different marine certificates. Such as the One drum one gypsy type, double drum double gypsy mooring winch.
Marine Electric Double Drum Mooring Winch Technical parameters
| Drum load | Holding load | Power | Nom speed | ||||||
| Rope dia. | Drum size(nylon wire size) | ||||||||
| (KN) | (KN) | （kw) | (m/min) | Nylon | Steel | D1 | D2 | L | Capacity |
| (mm) | (mm) | (mm) | (mm) | （mm) | (mm) | ||||
| 50 | 150 | 15 | 16 | 45 | 20.5 | 480 | 820 | 650 | 180 |
| 480 | 1045 | 720 | |||||||
| 80 | 240 | 15 | 25 | 50 | 26 | 480 | 880 | 820 | 200 |
| 480 | 1200 | 920 | |||||||
| 100 | 310 | 15 | 32 | 55 | 28 | 540 | 930 | 840 | 200 |
| 540 | 1260 | 840 | |||||||
| 125 | 360 | 15 | 38 | 64 | 30 | 540 | 950 | 820 | 200 |
| 540 | 1480 | 960 | |||||||
| 160 | 480 | 15 | 50 | 75 | 38 | 540 | 950 | 820 | 200 |
| 540 | 1480 | 960 | -250 | ||||||
| 200/250 | 630 | 15/12 | 61 | 90 | 40 | 650 | 1150 | 1000 | 250 |
| 650 | 1600 | 1400 | -240 | ||||||
more type of mooring winch can be offered,pls contact us for more details.
