Description
EPR Insulated Medium Voltage Shipboard Power Cable
Cable Application:
The cable is used on ships,petrol platforms and offshore buildings for power,light and control systems.
Cable Standards:
IEC 60092-350 , IEC 60092-354 , IEC 60332-1-2 , IEC 60332-3-22
IEC 60754-1/2 , IEC 61034 , GB/T 12706 (26/35kV)

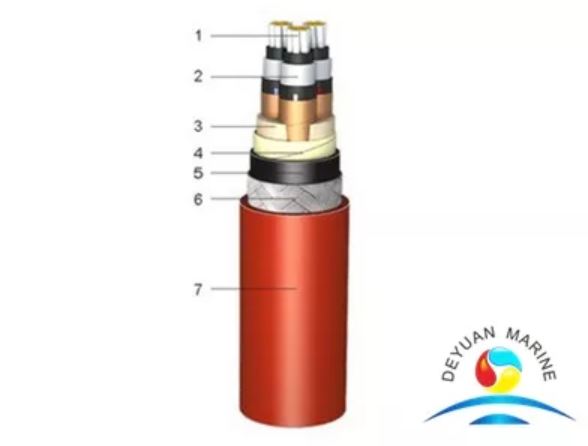

Cable Construction:
1- Conductor: Stranded circular tinned copper class2 IEC 60228
2- Insulation: EPR
3- Filler(if necessary)
4- Tape
5- Inner sheath: PO
6- Armour: Metal wire braid
7- Outer sheath: PO
Voltage: 3.6/6(7.2)kV , 6/10(12)kV , 8.7/15(17.5)kV , 12/20(24)kV , 18/30(36)kV , 26/35kv
Temperature: 90℃
Cable Parameter:
