Description

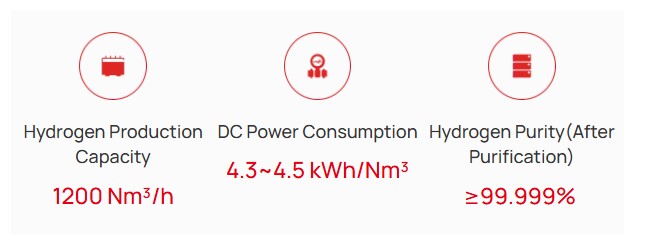

Hydrogen Production Capacity 1200 Nm³/h
DC Power Consumption 4.3~4.5 kWh/Nm³
Hydrogen Purity(Before Purification) ≥99.8%
Hydrogen Purity(After Purification) ≥99.999%
Operating Pressure 1.8 MPa
Operating Temperature 90±5 ℃
Power Fluctuation Range 30~120%
Cold Start Time ≤30 min
Hot Start Time ≤300 s
High stability
· 1.Double security with internal and external sealing
· 2.Upgraded fastening system reducing the leakage of electrolyzer under alternating working conditions
· 3.Large diameter double pole plate technology, effectively reducing the length of the electrolyzer
· 4.Bipolar plate coating thickness of more than 50μm at the lowest point
Low power consumption
· 1.New flow-field design with simulation testing features for flow uniformity in fuel cells
· 2.New-generation electrodes with industry-leading resistance overpotentials
· 3.Comprehensive power consumption ≤4.9kWh/Nm3
Wide power fluctuation range
· Power fluctuation range of 30-120%, better suiting wind and solar based hydrogen production
Short cold start time
· Self-developed lye heating circulation system, cold start time reduced by 50%
