CCS Approval 50-150KVA DEUTZ Marine Generator Set For Boat

CCS Approval 50-150KVA DEUTZ Marine Generator Set For Boat

Origin:Made in China

Engine:DEUTZ engine

Alternator:Marathon

Cooling type:By fan, by heat exchanger

Power:50KVA-150KVA

Voltage:380V, 415V, 440V etc

Certificate:ABS, BV, CCS, DNV, GL, KR, NK, etc

Delivery time:20-30 days

Payment term:TT, Western Union, Paypal

Packing:Export package

Category: Power & Propulsion System

Description

Description

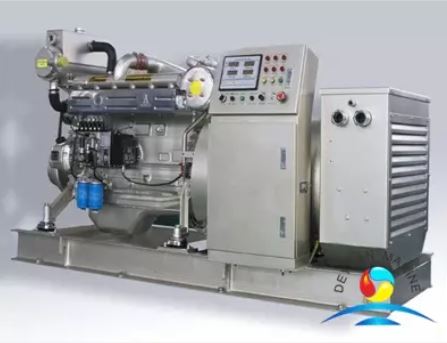

CCS Approval 50-150KVA DEUTZ Marine Generator Set For Boat:

*Power range: 40KW–120KW(50KVA~150KVA)

*Frequency &Speed: 50HZ @1500RPM; 60HZ@1800RPM

*Powered by DEUTZ engine,coupled with Marathon Alternator,SUNVIM,Stamford,Siemens alternator are optional

*EIAPP(Nox) certificate

*Class Approval Certificate: CCS,BV,RS,RRR,GL,VR,RINA,ABS

Technical Parameter:

Genset Specification			Engine Specification				Alternator	Dimensions/ Weight (mm;kg)
Rated output		Fre/Volt Hz/V	Model	Power/ speed	Cyl.	Fuel Consumption (L/H)	Mathrathon
KW	KVA	Fre/Volt Hz/V	Model	Power/ speed	Cyl.	Fuel Consumption (L/H)	Mathrathon
40	50	50/400	WP4CD60-15	60/1500	4	7.9	MP-H-40-4	16636201242 (970kg)
50	62.5		WP4CD60-15	60/1500	4	9.9	MP-H-50-4	16636201242 (1000kg)
64	80		WP4CD-75-15	75/1500	6	12.8	MP-H-64-4	19587981340 (1100kg)
75	93.80		WP6CD-90-15	90/1500	6	16	MP-H-75-4	19587981340 (1150kg)
100	125		WP6CD-120-15	120/1500	6	20	MP-H-100-4	20687981340 (1380kg)
120	150		WP6CD-132-15	132/1500	6	22	MP-H-120-4	20808001340 (1400kg)

50	62.5	60/440	WP4CD60-15	60/1800	4	9.9	MP-H-50-4	16636201242 (1000kg)
64	80		WP6CD-90-15	75/1800	6	12.80	MP-H-64-4	19587981340 (1100kg)
75	93.80		WP6CD-120-15	90/1800	6	16	MP-H-75-4	19587981340 (1150kg)
100	125		WP6CD-132-15	120/1800	6	20	MP-H-100-4	20687981340 (1380kg)
120	150		WP6CD-132-15	132/1800	6	22	MP-H-120-4	20808001340 (1400kg)
