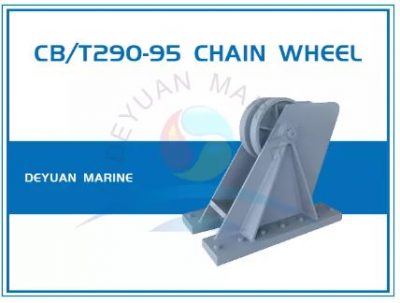

CB/T290-95 Anchor Chain Wheel

CB/T290-95 Anchor Chain Wheel

Place of Origin:China

Brand:Deyuan Marine

Standard:CB/T290-84

Dia.of chain:14~68mm

Material:Cast steel

Surface Treatment:Expoxy primer coating

Certificate:IACS certificate available

Categories: Marine Anchor Chain, Mooring And Towing Equipment

Description

Description

CB/T290-95 Chain Wheel

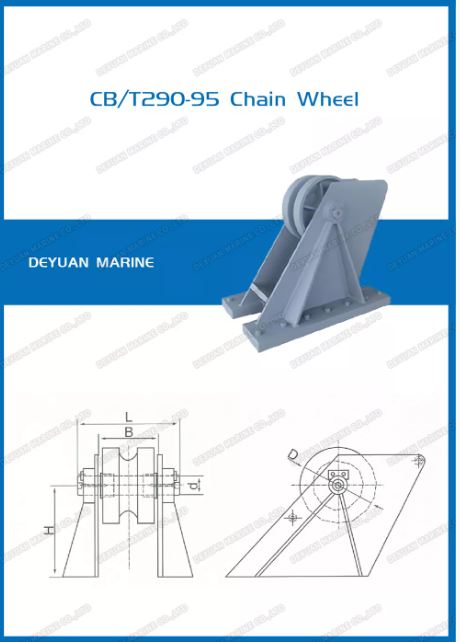

Type	Dia. of anchor chain	D	d	L	B	H	Weight(kg）
14	12.5-14	154	26	164	94	150	12.7
17.5	16 〜17.5	192	32	186	108	170	21.0
20.5	19-20.5	226	38	208	122	210	32.6
24	22 〜24	264	42	236	142	240	50.0
28	26-28	308	48	262	160	280	74.0
32	30-32	352	54	292	178	310	104.9
36	34-36	396	58	319	201	360	144.4
40	38 〜40	440	64	349	219	390	189.8
44	42 〜44	484	70	377	239	430	239.9
48	46 〜48	528	74	405	259	470	305.5
52	50 〜52	572	78	430	280	510	370.3
56	54 〜56	616	82	466	302	540	453.6
60	58-60	660	88	492	320	580	572.3
64	62 〜64	704	94	526	342	620	687.5
68	66 〜68	748	98	552	360	660	832.3
