Description

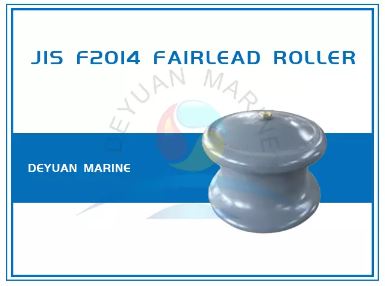

Cast Steel Marine Warping Roller JIS F2014-87
This type of warping roller is designed according to the standard of JIS F2014-87.Warping roller diameter is from100mm to 450mm,suitable for rope diameter from 40mm to 80mm.
Material for the warping roller is cast iron or cast steel,available certificate is CCS,ABS,LR,DNV,BV,RINA etc.
Apart from JIS F2014-87 warping rollers, we still offer other rollers like guide roller with stand(open type &close type),DIN81906 warping roller,DIN80907 warping roller with pedestal type A and type B.
Warmly welcome you to send us your inquiry if you are interested.

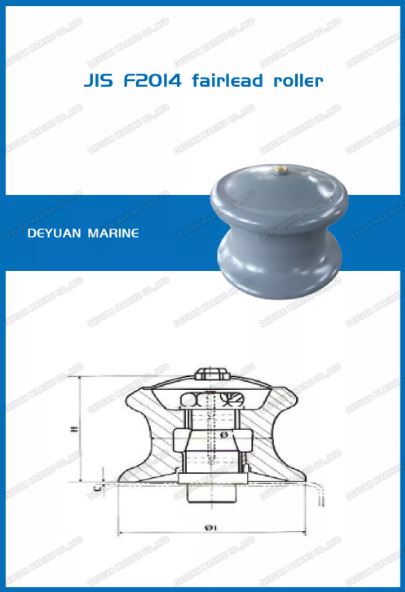

JIS F2014-87 Warpingg roller data for your reference
| NOMINAL DIA (mm) |
Ø (mm) |
1 (mm) |
H (mm) |
C (mm) |
WEIGHT (kg) |
| 150 | 150 | 240 | 195 | 3 | 32.1 |
| 200 | 200 | 310 | 235 | 3 | 64.6 |
| 250 | 250 | 380 | 282 | 4 | 108 |
| 300 | 300 | 440 | 305 | 4 | 159 |
| 350 | 350 | 500 | 330 | 4 | 235 |
| 400 | 400 | 560 | 355 | 5 | 336 |
