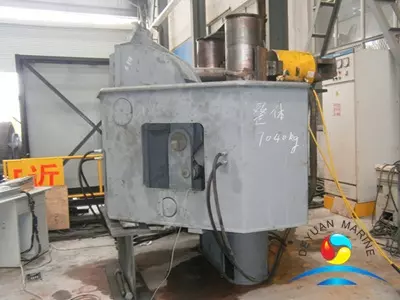

AHTS Vessels Shark Jaw And Towing Pin With CCS Approval
Shark jaw and towing pin are dragging equipment on AHTS. The main function is to hold cable or rope to prevent the rope, wire rope, chain slide away, it is an equipment can also withstand the force when holding rope or chain. Shark jaw and towing pin is protruding on deck when it work, drop to below deck when it do not need to work and keep in same level with deck then keep the deck surface smooth. The equipment consists of shark jaw, towing pin, pump stations and electric control system. The towing pin as a guide for the use when anchoring or towing.
We can design shark jaw and towing pin capacity in a range of 100T to 700T, all of our shark jaw and towing pin can provide certificate such as ABS, BV, CCS, LR, GL, DNV etc are available. More marine deck equipment shark jaw towing pin information, kindly contact with us!
| Shark Jaw Model | 100MTSJ | 200MTSJ | 300MTSJ | 350MTSJ | 500MTSJ | 750MTSJ |
| Towing Pin Model | 100MTTP | 200MTTP | 300MTTP | 350MTTP | 500MTTP | 750MTTP |
| Bollard Pull (Tonnes) | 40 | 55 | 70 | 90 | 120 | 200 |
| Holding Capacity (Tonnes) | 100 | 200 | 300 | 350 | 500 | 750 |
| Power Pack Model | EPP-5.5 | EPP-11 | EPP-18.5 | EPP-18.5 | EPP-22 | EPP-22 |
More ahts vessels shark jaw can be offered,pls contact us for more details.
