Description

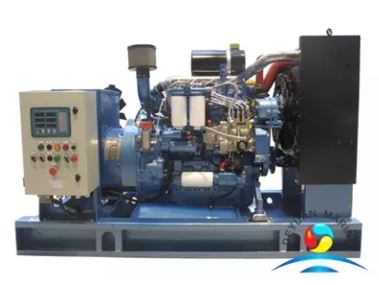

WP4 Series Marine Emergency Diesel Generators:
1, Rated power: 64kW;
2, rated voltage: 400V;
3, the rated speed / rated frequency: 1500rpm/50Hz;
4, Rated power factor: 0.8 (lagging);
5, rated current: 115.5A
6, number of cylinders / Bore / Stroke: 4/105mm/130mm;
7 Displacement: 4.5L;
8 Cooling: Closed radiator fan forced cooling;
9, the start-up mode: DC24V electric motor and air motor (spring motors);
10, number of phases and connection: three-phase four-wire, star connection;
11, excitation / regulator: Brushless / AVR automatically;
12, diesel fuel consumption economy: ≤ 200g/kW · h;
13 Oil consumption: ≤ 1.1g/kW · h;
