Description

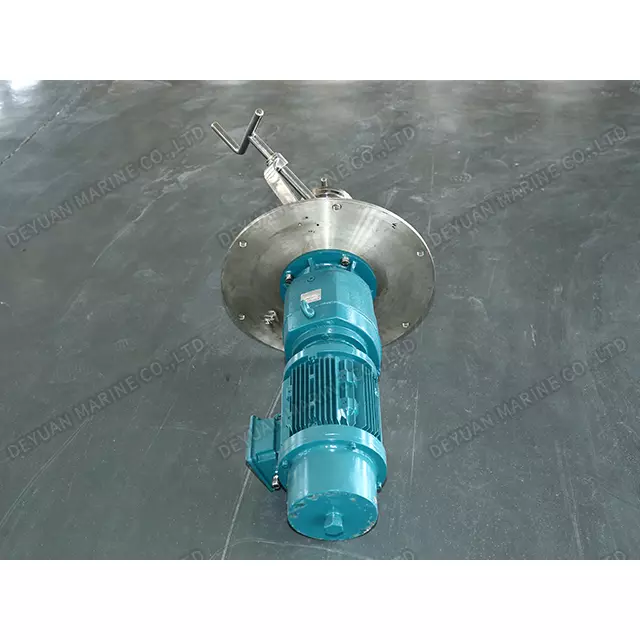

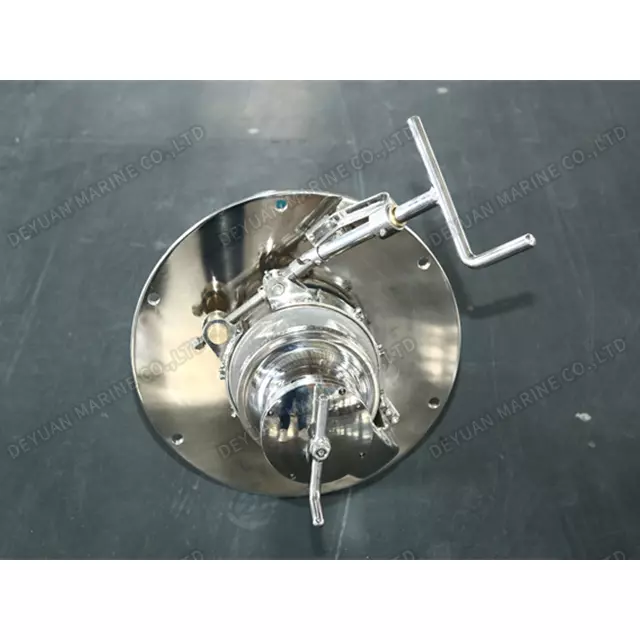

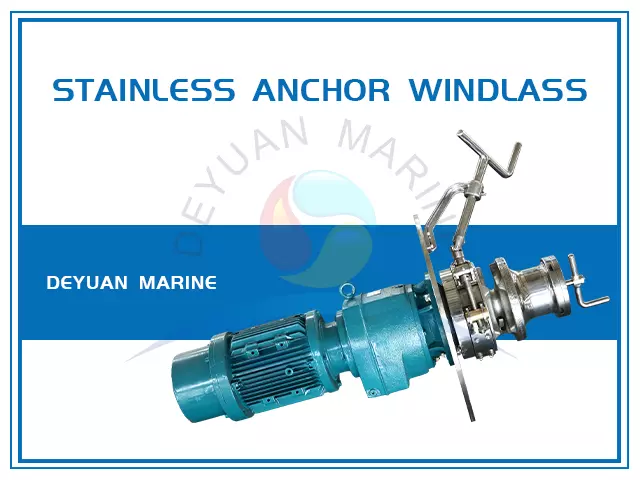

316L Stainless Steel Boat Electric Vertical Anchor Windlass with Capstan
Small size of ships like patrol boat, yacht and work boat has compact space on the deck, so usually consider to adopt windlass as vertical type or small stainless horizontal type, to save precious space of the deck. What’s more, the vertical arrangement allows the electric motor and reduction gear hidden under the deck, not only save the space of deck but also keep the motor and reduction gear away from bad weather and sea water, realize few maintain work.
Surface Treatment Features:
All the metal materials excpet motor and reduction gear are stainless steel 316L, could be processed mirror polish, surface will be as smoothy as a mirror.
To avoid the capstan sliping with rope, can make somes strips on the surface of the capstan.
Structural Features:

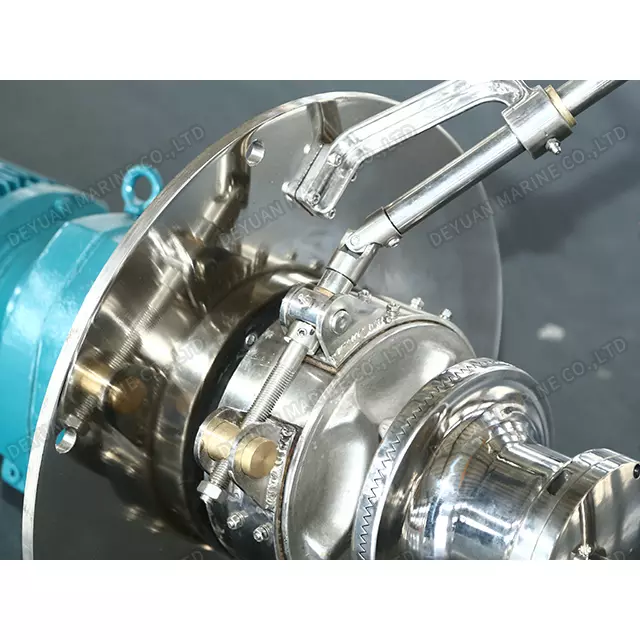

1. Common vertical windlass looks quite ugly due to structure of arrangement of brake holder and chain spliting device. We solve this problem with simple, compact and reliable arrangement of them, result in good looking product.

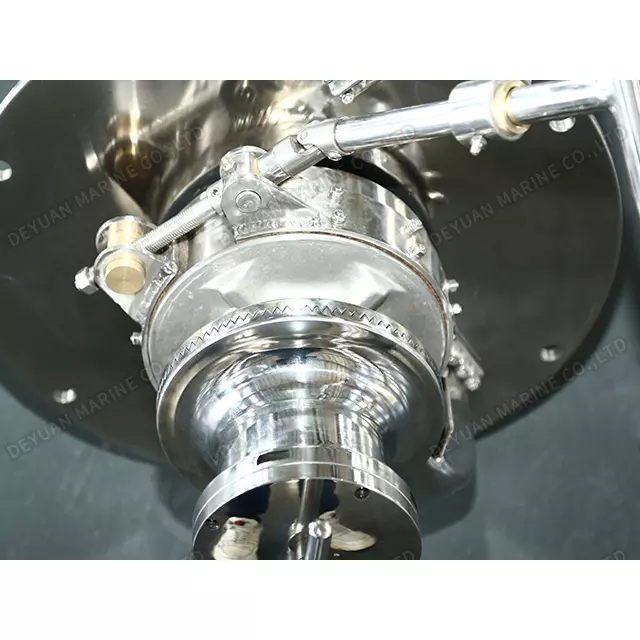

2. Dentate Clutch
Common 3 claw type clutch require quite precise positioning for clutching, we designed the cluthc as many small size of tooth gears which make the clutching work very easy, nearly no need care about the positions.
Specification for anchor windlass:
| Name | Chain Dia. | Working Load | Holding Load | Working Speed | Capstan Load | Motor Power |
| (mm) | (KN) | (KN) | (m/min) | (KN) | (KN) | (KW) |
| Φ14/16/17.5 Anchor Windlass | Φ14/16/17.5 | 8.3/10.9/13.0 | 51/67/80 | ≥9 | 8 | 5.5 |
| Φ19/20.5/22 Anchor Windlass | Φ19/20.5/22 | 15.3/17.9/20.6 | 95/110/126 | ≥9 | 10 | 7.5 |
| Φ24/26 Anchor Windlass | Φ24/26 | 24.5/28.7 | 149/175 | ≥9 | 20 | 11 |
| Φ28/30 Anchor Windlass | Φ28/30 | 33.3/38.3 | 202/231 | ≥9 | 30 | 15 |
| Φ32/34/36 Anchor Windlass | Φ32/34/36 | 43.5/49.1/55.1 | 261/294/329 | ≥9 | 30 | 22 |
| Φ38/40/42 Anchor Windlass | Φ38/40/42 | 61.4/68.0/75.0 | 365/402/442 | ≥9 | 40 | 30 |
| Φ44/46/48 Anchor Windlass | Φ38/40/42 | 82.3/89.9/97.9 | 483/526/570 | ≥9 | 50 | 37 |
| Φ50/52/54 Anchor Windlass | Φ50/52/54 | 106.3/114.9/123.9 | 617/664/713 | ≥9 | 50 | 45 |
| Φ56/58/60 Anchor Windlass | Φ56/58/60 | 133.3/143.0/153 | 764/816/870 | ≥9 | 60 | 55 |
| Φ62/64 Anchor Windlass | Φ62/64 | 163.4/174.1 | 925/982 | ≥9 | 80 | 55 |
| Φ66/68 Anchor Windlass | Φ66/68 | 185.1/196.5 | 1040/1098 | ≥9 | 100 | 75 |
| Φ70/73 Anchor Windlass | Φ70/73 | 208.3/226.5 | 1160/1254 | ≥9 | 100 | 75 |
